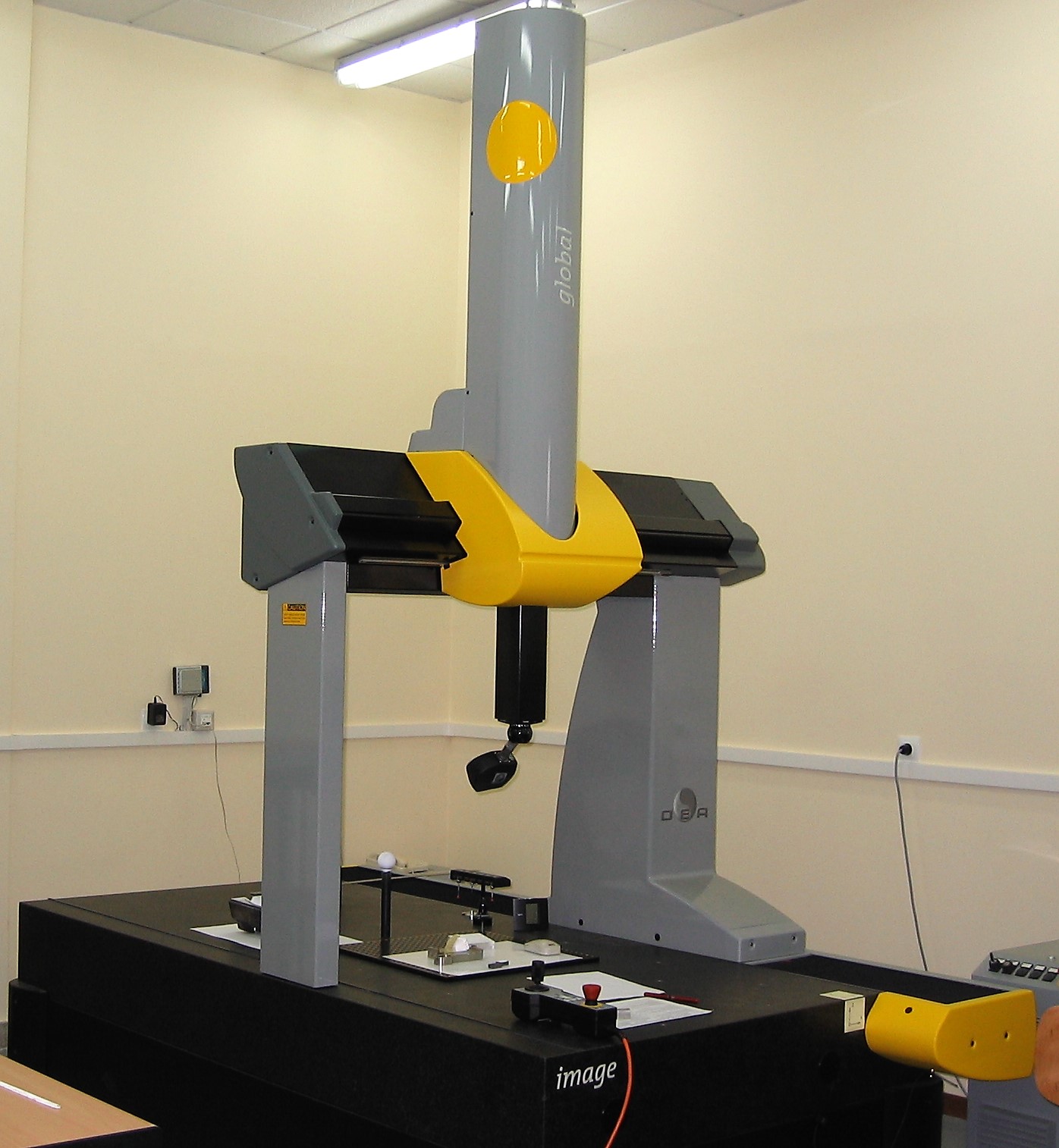

This is a medium-sized, three-axis Cartesian Coordinate Measuring Machine (CMM) featuring a gantry configuration and a vertical spindle. It is equipped with PC-DMIS software and an indexable PH10T probe head.

  • Working area (X/Y/Z): 900/1500/800 mm
  • E0,MPE= 2.2 + 3 L /1000 µm
  • R0,MPL= 2.2 µm
  • E150,MPE= 2.2 + 3 L /1000 µm
  • Machine controller: B3C-LC
