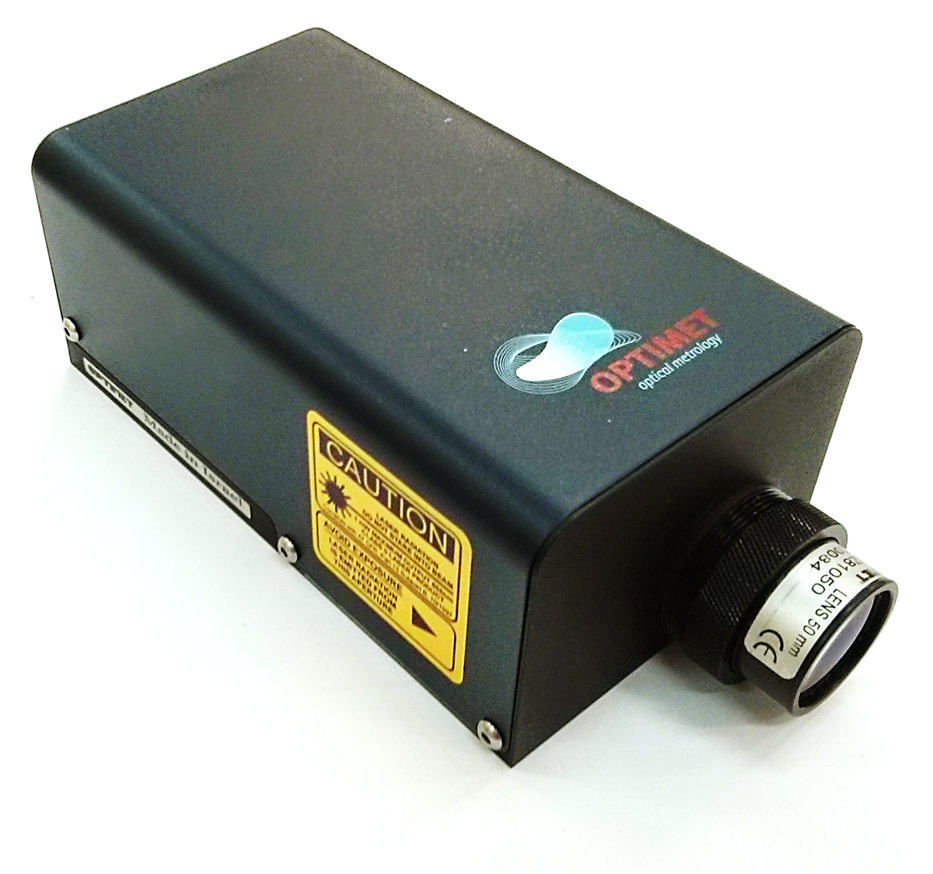

Conoprobe Mark III is a sensor for scanning based on conoscopic holography technology. It allows for capturing frequencies from 0 to 3000 Hz. In the sensor head can be installed different lenses in order to adapt the capture signal to the type of measurement.

  • Laser Type / Laser Wavelength: Class II diode laser / ~655 nm
  • Accuracy: up to ~100 µm (depending on lens and setup)
  • Spot Size: ~100 µm (typical, lens-dependent)
  • Typical Focal Length Range: ~16 mm to >250 mm
  • Working Range: lens-dependent (e.g., 155–335 mm with 250 mm lens)
  • Depth of Field: lens-dependent (e.g., ~8 mm with 50 mm lens)
