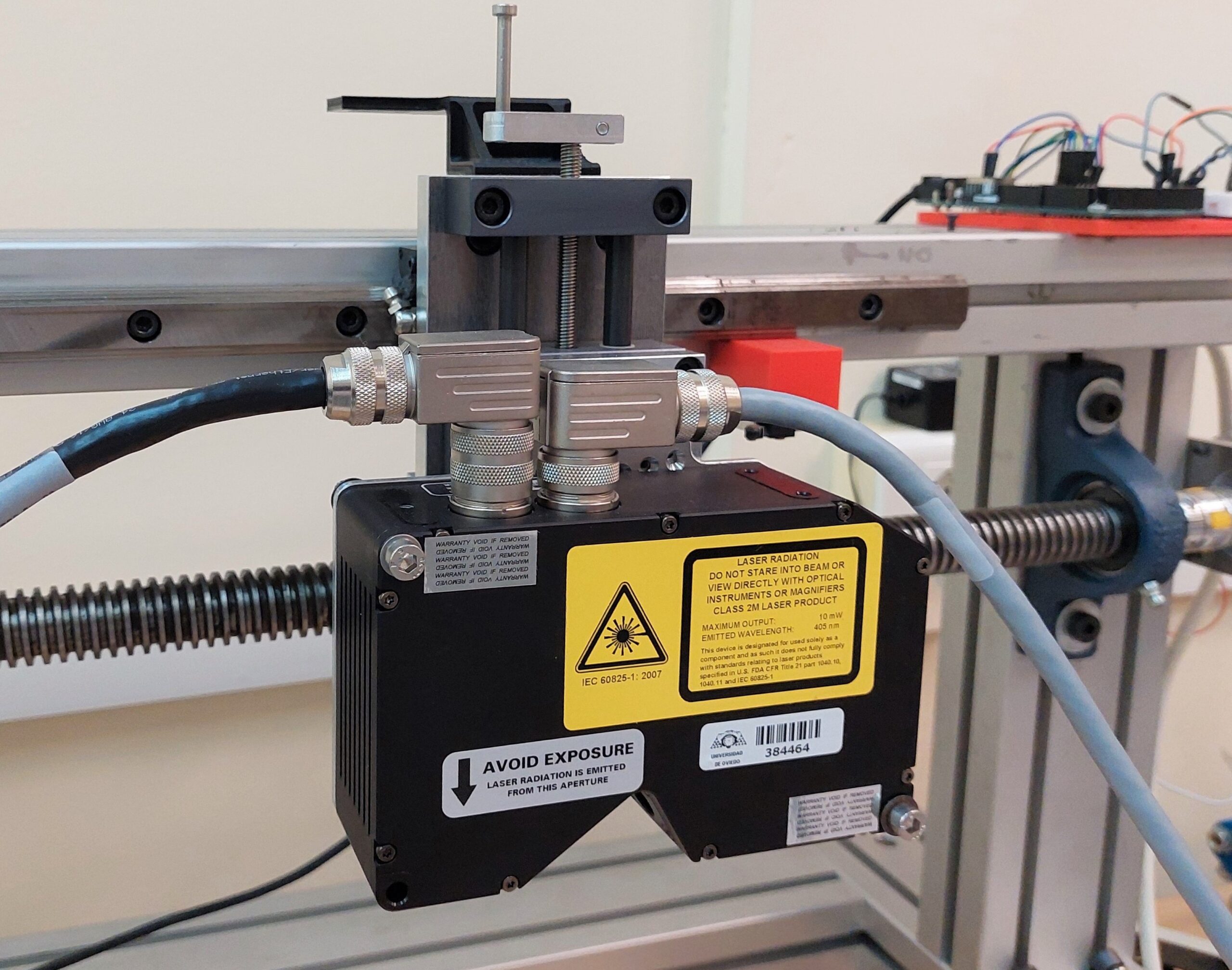

Gocator 2410 is a 3D laser line sensor manufactured that allows for 3D scanning of components of different nature and material. The sensor includes power supply, power cables and connection to an external encoder.
- Laser class: 2M, 3R (blue, 405 nm)
- Resolution X / Repeatability Z: 5.8 – 6.2 μm / 0.2 μm
- Clearance Distance (CD) : 19 mm
- Field of View (FOV): 10.0 mm
- Scan rate: 200 Hz, up to 5 kHz
